Halogen Headlight upgrade?? ea81

SuBaRiNo · Post by **SuBaRiNo** » Sun Jul 08, 2007 12:13 am

Anyone done the Halogen Headlight upgrade on an ea81 subi (single headlight)

I got the conversion kit and done some readings with the mulitmeter.... it appears that the 82 and up ea81 subies are negative triggered at the head light... does this sound right??

Also does anyone know for sure which pin is meant to do what on the back of a Hallegon H4 globe? eg: whats earth and what ones are the power feeds for hight and low beam??

Im wanting to rewire these using relays and upgraded cabling to give the best possible results... can anyone put some light on this for me.

Dave

Gannon · Post by **Gannon** » Sun Jul 08, 2007 7:52 am

Yep, the globe has a permanent positive voltage feed, and it is the negative that is switched.

If you get your multimeter and put the negative probe on the body, you will be able to find the positive feed terminal in that 3 pin connector with the positive multimeter probe.
Once you have found the positive terminal, then put the pos probe of the multimeter on the positive battery post, and find the switched terminals in the 3 pin connector (you will have to turn the ignition on) with the neg multimeter probe

hope that makes sense

subanator · Post by **subanator** » Mon Jul 09, 2007 12:25 am

Dave I did this conv to my old MY wagon, and yes the H4 pin out is different to the old sealed beam plugs. I cut and spliced my wiring in the wiring loom behind the RHS headlight between battery to the New Era double fused relay that you can get from Super cheap. Relayed both Low and High beams.

subaruby · Post by **subaruby** » Mon Jul 09, 2007 12:07 pm

I am considering doing this conversion on my wagon, did you notice a big difference in the lights?

Jack · Post by **Jack** » Mon Jul 09, 2007 6:43 pm

I changed over to Halogen headlights on the Brumby over a year ago and am very happy with the result. Didn't do the job myself as I'm a real numpty when it comes to electrical work.

Got an auto electrician to swap the sealed beams with IPF inserts and fit an IPF loom. Also fitted 130/100 watt bulbs, and driving at night is now quite comfortable. The IPF inserts have a slightly elevated beam on the left hand side which throws the light a little further along the road shoulder, and low beam has a distinct leading edge that makes adjusting the light beam quite easy.

The Brumby's headlight setup is very effective and I don't need to fit driving lights.

Jack

subanator · Post by **subanator** » Tue Jul 10, 2007 12:08 am

subaruby wrote:I am considering doing this conversion on my wagon, did you notice a big difference in the lights?

Yes HUGE improvement, like new car lights. I used Narva 5" headlight kit with the 65/100W globes as supplied, but blew these with a faulty regulator. Just replaced these with the standard 55/65W and added 100W spotties for open road driving with relay etc. Narva kit is about $130 for the pair. Round light gives a square beam, with a good spread.

At the time my brother with his quad lights on his Brumby was quite jealous.

90brumby · Post by **90brumby** » Tue Jul 10, 2007 12:18 am

im in the procees on gettin the quad lights on my brumby changed over
just gotta get the effort to do it

BRUMBERTY · Post by **BRUMBERTY** » Tue Jul 10, 2007 9:40 am

This is the link to read then...

http://www.danielsternlighting.com/tech ... elays.html

Dave, I have just done this too- huge improvement over the quad light set up on the WB 1.

SuBaRiNo · Post by **SuBaRiNo** » Tue Jul 10, 2007 8:37 pm

Thanks for the input guys. Subanator any chance you can be more specific on what you had to change... I assume the H4s are not negative triggered... it makes more sence to me that one pin would be for Earth and the 2 other pins are meant to be the power (one high beam one low beam).

The wiring and relaying is not a problem just need the correct pin outs and what should be going to each pin on the back of the H4 globes. At a guess i would say the center horizonatal pin would be earth... and power feeds either side. Any help on this??

Dave

Post by **Alex** » Tue Jul 10, 2007 8:59 pm

seriously look into HID's as well, i just put them in my liberty and they made a massive difference, probably the best mod you can do i reckon..i wasn't expecting them to work as well as they do, the high beam does f/a now..

alex

subanator · Post by **subanator** » Tue Jul 10, 2007 11:32 pm

SuBaRiNo wrote:Thanks for the input guys. Subanator any chance you can be more specific on what you had to change... I assume the H4s are not negative triggered... it makes more sence to me that one pin would be for Earth and the 2 other pins are meant to be the power (one high beam one low beam).

The wiring and relaying is not a problem just need the correct pin outs and what should be going to each pin on the back of the H4 globes. At a guess i would say the center horizonatal pin would be earth... and power feeds either side. Any help on this??

Dave

Best way I can answer this, before you change anything, get your meter and check what wire is earthed (ohms). Then operate the lights high and low and measure voltage to see which is high and low.

Then grab the new light with globe inserted, and I assume you have new H4 plugs with flying leads. Try to measure between with the meter, ground is common between filaments, one reading across the 3 wires in all combinations will be high, medium and lower resistance. Discount the high reading, this will be across both filaments, the medium one will be high beam and the low reading is low. Now try this across you battery to check and see if this works. You will have to cut off your original plug an splice the new plugs to suit - and the pins will be different.

subanator · Post by **subanator** » Tue Jul 10, 2007 11:39 pm

http://www.go.jeep-xj.info/HowtoHeadlightLoom.htm

SuBaRiNo · Post by **SuBaRiNo** » Thu Jul 12, 2007 12:00 am

Thanks mate... i should be able to work it out by that.

Dave

subanator · Post by **subanator** » Thu Jul 12, 2007 12:14 am

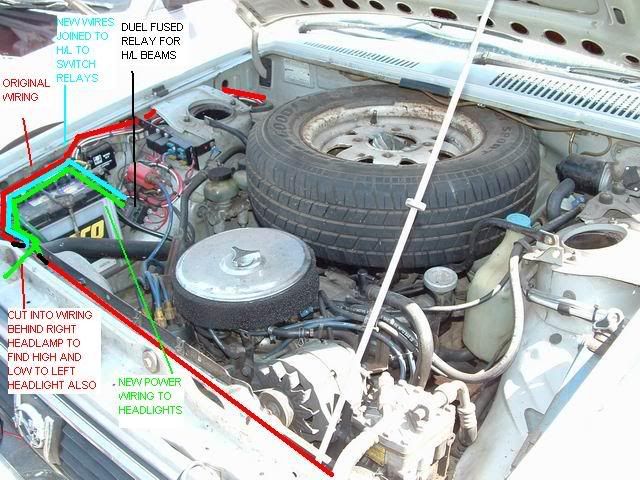

Hope this makes some more sense.

SuBaRiNo · Post by **SuBaRiNo** » Thu Jul 12, 2007 12:17 am

Yeah i think im on board now. The wiring in my car is different from yours but using the information you have provided i can transfer it to my set up. Thanks again Mate... might have to get onto this on Saturday.

Dave

SuBaRiNo · Post by **SuBaRiNo** » Thu Jul 12, 2007 8:55 pm

Follow up question... are the lights meant to be so either the High or Low filament light... or when your on high beam both filaments are meant to light??

Dave

90brumby · Post by **90brumby** » Thu Jul 12, 2007 9:15 pm

im pritty sure that they change filaments dont quote me tho

Learner · Post by **Learner** » Thu Jul 12, 2007 10:11 pm

what type of lights do l series run(1989 touring wagom) is it h4?

Matatak · Post by **Matatak** » Thu Jul 12, 2007 10:27 pm

yer like 90Brumby says they change filaments on every H4 gobe that ive seen
but when doin the kinda flick thing with the lever..as in pull it forward for a flash instead of engaging them they seem to keep both lit up
thats if ya know wt i mean

and im talkin off experience from a Lancer a Corrolla a Pajero and an Outback that we have but i always see it at work when testing lights out on cars

subanator · Post by **subanator** » Sat Jul 14, 2007 12:31 am

SuBaRiNo wrote:Follow up question... are the lights meant to be so either the High or Low filament light... or when your on high beam both filaments are meant to light??

Dave

Only one beam comes on at at time, otherwise I reckon you would shorten the life of the globe by overheating by running both beams. If this is whats happening, you have the wiring wrong and the ground is on another terminal in the H4 pin out.
