RX Turbo Sedan tranny tunnel narrower?
RX Turbo Sedan tranny tunnel narrower?
The exact area I am referring to is the distance between the sides where the rear gearbox crossmember goes on Automatic models, on manual models a small "crossmember" which seems to just serve as a safeguard to catch the tailshaft if it drops.
On my 1990 MPFI Touring wagon this distance is approx 310mm.
On my 1986 RX Turbo sedan this distance is approx 240mm.
http://members.iinet.net.au/~carine3/IM ... 10_red.jpg
No huge problem I guess, it just means I can't make an exact copy of my modified Liberty gearbox mount which I already have on the wagon. I'll have to make another one from scratch to suit this smaller distance on the RX!
On my 1990 MPFI Touring wagon this distance is approx 310mm.
On my 1986 RX Turbo sedan this distance is approx 240mm.
http://members.iinet.net.au/~carine3/IM ... 10_red.jpg
No huge problem I guess, it just means I can't make an exact copy of my modified Liberty gearbox mount which I already have on the wagon. I'll have to make another one from scratch to suit this smaller distance on the RX!
EZ30 L series - Monsterwagon
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
- Chris_Rogers
- General Member
- Posts: 1155
- Joined: Sat Dec 31, 2005 10:00 am
- Location: Brisbane
- Contact:
Ah so that makes mine a series1 I guess.
I hope it still fits the RS Legacy 5spd awd!
I hope it still fits the RS Legacy 5spd awd!
EZ30 L series - Monsterwagon
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
- AlpineRaven
- Senior Member
- Posts: 3682
- Joined: Wed Oct 19, 2005 10:00 am
- Location: Melbourne, Victoria, Australia.
Yep, I've heard people have modified in that area - Cannot remember where, same goes for automatic to manual conversion - I dunno if RS gearbox would fit... is it going behind EA81T? (I'm concerned about RS's 5th gear being pulled behind EA81T?)
Cheers
AP
Cheers
AP
Subarus that I have/had:
1995 Liberty "Rallye" - 5MT AWD, LSD - *written off 25/8/06 in towing accident.
1996 Liberty Wagon - SkiFX AWD 5MT D/R, Lifted.. Outback Sway Bar, 1.59:1 Low Gearing see thread: 1.59:1 in EJ Box Page
Sold at 385,000kms in July 2011.
2007 Liberty BP Wagon, 2.5i automatic
![Image](http://i14.photobucket.com/albums/a313/tmerritt/PICT0927.jpg)
1995 Liberty "Rallye" - 5MT AWD, LSD - *written off 25/8/06 in towing accident.
1996 Liberty Wagon - SkiFX AWD 5MT D/R, Lifted.. Outback Sway Bar, 1.59:1 Low Gearing see thread: 1.59:1 in EJ Box Page
Sold at 385,000kms in July 2011.
2007 Liberty BP Wagon, 2.5i automatic
![Image](http://i14.photobucket.com/albums/a313/tmerritt/PICT0927.jpg)
Nah I'm putting Legacy EJ20turbo with it's matching 5spd AWD gearbox into this car (tranny tunnel pictured in my first post above).
`86 RX turbo (it would have been EA82T anyways not EA81T)
`86 RX turbo (it would have been EA82T anyways not EA81T)
EZ30 L series - Monsterwagon
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
- Gannon
- Senior Member
- Posts: 4580
- Joined: Sat Nov 05, 2005 10:00 am
- Location: Bowraville, Mid Nth Coast, NSW
Digging up an old thread here, but this has lifted a lot of confusion from my mind
I was trying to work out why the l series rear gearbox crossmember i have doesnt seem to fit under the RX
Now i know why
I was trying to work out why the l series rear gearbox crossmember i have doesnt seem to fit under the RX
Now i know why
Current rides: 2016 Mitsubishi Triton GLS & 2004 Forester X
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
- steptoe
- Master Member
- Posts: 11582
- Joined: Thu Oct 06, 2005 10:00 am
- Location: 14 miles outside Gotham City
Gannon, when you say 'rear' gearbox crossmember you mean the rather flimsy 'brace' that bolts across the tunnel further back from the xmem holding gearbox in place?
When I pulled man gearbox from my 11/87 TW to shove in my SEP85 born , 3/87 compliance plated 4GLTA, the main gearbox crossmember fitted up fine, thought I'd use the brace, just for added 'engineering' . Don't believe it ever went in. Do you need the brace or its holes for EJ AWD box crossmember or sumptin'?
When I pulled man gearbox from my 11/87 TW to shove in my SEP85 born , 3/87 compliance plated 4GLTA, the main gearbox crossmember fitted up fine, thought I'd use the brace, just for added 'engineering' . Don't believe it ever went in. Do you need the brace or its holes for EJ AWD box crossmember or sumptin'?
- Gannon
- Senior Member
- Posts: 4580
- Joined: Sat Nov 05, 2005 10:00 am
- Location: Bowraville, Mid Nth Coast, NSW
Well i never really looked at the crossmember in my last L series, but I seem to recall that it attached to the rear of the gearbox near an exhaust bracket.steptoe wrote:Gannon, when you say 'rear' gearbox crossmember you mean the rather flimsy 'brace' that bolts across the tunnel further back from the xmem holding gearbox in place?

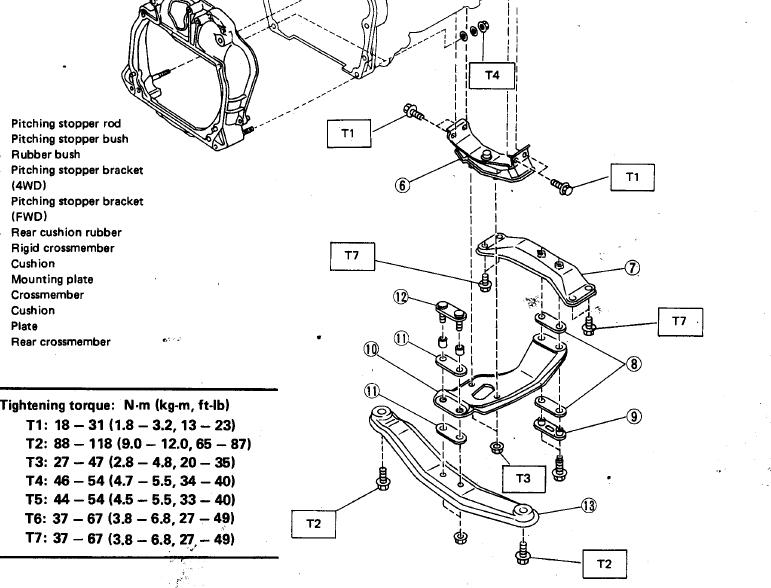

This is an EJ gearbox crossmember setup, which looks very similar to this Vortex setup from the FSM
![Image](http://farm4.static.flickr.com/3396/3646654354_5e78e32c2b.jpg)
God i wish i had my RX nearby so i could have a look under it
- Attachments
-
- gearbox x.JPG (74.51 KiB) Viewed 2761 times
Current rides: 2016 Mitsubishi Triton GLS & 2004 Forester X
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
- steptoe
- Master Member
- Posts: 11582
- Joined: Thu Oct 06, 2005 10:00 am
- Location: 14 miles outside Gotham City
That pic is of an EJ box in an EJ born vehicle going by the wishbone mounts there in extruded alloy. Definitely only the bigger stronger xmem on my 85 L Sedan used when I fitted the DR 5 speed man box, now not sure if the brace came from the 87 wagon and did not fit the 85 sedan, come to think again, that is what it was...I think.....????
Trotting out in the not so hot conditions (see Mark - NOT complaining of the cold eh
) to take a pic of my L before Gannon gets to sign off
Trotting out in the not so hot conditions (see Mark - NOT complaining of the cold eh
![Smile :)](./images/smilies/icon_smile.gif)
- steptoe
- Master Member
- Posts: 11582
- Joined: Thu Oct 06, 2005 10:00 am
- Location: 14 miles outside Gotham City
submit a crash report on imageshack
Here is a shot if it helps of the Dr 5 speed in my 85 4GLTA sedan, you should be able to see the plate I used and bolts, to cover the bolt holes where the 'brace' was, or could have been if it fitted. More memories come back, the 87 had the brace that did not fit the 85 sedan body, so just used the washers off the brace rubbers
![Image](http://img33.imageshack.us/img33/644/dsc02372pq.jpg)
Uploaded with ImageShack.us
Here is a shot if it helps of the Dr 5 speed in my 85 4GLTA sedan, you should be able to see the plate I used and bolts, to cover the bolt holes where the 'brace' was, or could have been if it fitted. More memories come back, the 87 had the brace that did not fit the 85 sedan body, so just used the washers off the brace rubbers
![Image](http://img33.imageshack.us/img33/644/dsc02372pq.jpg)
Uploaded with ImageShack.us
- T'subaru
- Junior Member
- Posts: 733
- Joined: Mon Oct 13, 2008 9:13 am
- Location: T'sunami Coast, Wa. ( usa )
This got me curious so....
This shot is the mounts on a '87 RX
front mount 524 mm's center to center
rear mount 279 mm's " "
![Image](http://i810.photobucket.com/albums/zz24/tsunamaru/100_0636-1.jpg)
This is an '89 RX using a rear mount my fsm doesnt show being used.
rear mount 346 mm's center to center
![Image](http://i810.photobucket.com/albums/zz24/tsunamaru/100_0638-1.jpg)
This is the ej trans I installed on my '90 turbo wagon using xt6 front and rear mounts along with an ej center section.
front mount 524 mm's center to center
rear mount 346 mm's " "
![Image](http://i810.photobucket.com/albums/zz24/tsunamaru/100_0631-1.jpg)
This shot is the mounts on a '87 RX
front mount 524 mm's center to center
rear mount 279 mm's " "
![Image](http://i810.photobucket.com/albums/zz24/tsunamaru/100_0636-1.jpg)
This is an '89 RX using a rear mount my fsm doesnt show being used.
rear mount 346 mm's center to center
![Image](http://i810.photobucket.com/albums/zz24/tsunamaru/100_0638-1.jpg)
This is the ej trans I installed on my '90 turbo wagon using xt6 front and rear mounts along with an ej center section.
front mount 524 mm's center to center
rear mount 346 mm's " "
![Image](http://i810.photobucket.com/albums/zz24/tsunamaru/100_0631-1.jpg)
'86 GL, '89 RX, '89 XT6, '90 T'sunami Wagon
- Gannon
- Senior Member
- Posts: 4580
- Joined: Sat Nov 05, 2005 10:00 am
- Location: Bowraville, Mid Nth Coast, NSW
Wow you guys are amazing.
A picture tells a thousand words, but what is the mount in the 89 RX supporting?
A picture tells a thousand words, but what is the mount in the 89 RX supporting?
Current rides: 2016 Mitsubishi Triton GLS & 2004 Forester X
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
Ongoing Project/Toy: 1987 RX Turbo EA82T, Speeduino ECU, Coil-pack ignition, 440cc Injectors, KONI adjustale front struts, Hybrid L Series/ Liberty AWD 5sp
Past rides: 92 L series turbo converted wagon, 83 Leone GL Sedan, 2004 Liberty GT Sedan & 2001 Outback
------------------------------------------
- T'subaru
- Junior Member
- Posts: 733
- Joined: Mon Oct 13, 2008 9:13 am
- Location: T'sunami Coast, Wa. ( usa )
Not a thing, its flat across top and doesnt have any hole prep for mounts at all, directly above it the shifter linkage attaches to the trans.Suparoo wrote:Wow you guys are amazing.
A picture tells a thousand words, but what is the mount in the 89 RX supporting?
'86 GL, '89 RX, '89 XT6, '90 T'sunami Wagon
That little thin mount at the very rear which doesn't actually support anything is just a safety device. If the tailshaft drops off for some reason, that will catch it and prevent it sticking into the ground and possibly flipping the car.
At least that's what someone told me once and I guess it makes sense![Smile :)](./images/smilies/icon_smile.gif)
In automatic model L series it's not there, but the holes in the body are used for part of the auto trans crossmember.
At least that's what someone told me once and I guess it makes sense
![Smile :)](./images/smilies/icon_smile.gif)
In automatic model L series it's not there, but the holes in the body are used for part of the auto trans crossmember.
EZ30 L series - Monsterwagon
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
https://www.ausubaru.com.au/viewtopic.php?f=71&t=26163
- steptoe
- Master Member
- Posts: 11582
- Joined: Thu Oct 06, 2005 10:00 am
- Location: 14 miles outside Gotham City
I can see someone else uses a dremel style rotary tool to clean their gearbox ![Smile :)](./images/smilies/icon_smile.gif)
Notice also the cat converter halfway down the car. My 85 has it directly off the turbo in the dump pipe.
Looks like the rearest gearbox mount bolts can be used for EJ box as a brace across the mount holes and that brace can connect forward to the front gearbox xmem?
![Smile :)](./images/smilies/icon_smile.gif)
Notice also the cat converter halfway down the car. My 85 has it directly off the turbo in the dump pipe.
Looks like the rearest gearbox mount bolts can be used for EJ box as a brace across the mount holes and that brace can connect forward to the front gearbox xmem?
- steptoe
- Master Member
- Posts: 11582
- Joined: Thu Oct 06, 2005 10:00 am
- Location: 14 miles outside Gotham City
![Image](http://img848.imageshack.us/img848/1374/dsc00853d.jpg)
Uploaded with ImageShack.us
Just for your info Gannon, these two shots are of an EJ box behind an EJ20G in a Brumby, well it's gearbox mounting anyway - running in sleeper standard height body
![Smile :)](./images/smilies/icon_smile.gif)
- T'subaru
- Junior Member
- Posts: 733
- Joined: Mon Oct 13, 2008 9:13 am
- Location: T'sunami Coast, Wa. ( usa )
I'd buy into that, drive line safety loops are a big thing and required in alot of motor sports to prevent just that. Seems I remember seeing a factory list of part numbers and instructions on how to beef up an rx to factory rally car specs, and the holes are there to suit the auto trans cars anyway.AndrewT wrote:That little thin mount at the very rear which doesn't actually support anything is just a safety device. If the tailshaft drops off for some reason, that will catch it and prevent it sticking into the ground and possibly flipping the car.
At least that's what someone told me once and I guess it makes sense
In automatic model L series it's not there, but the holes in the body are used for part of the auto trans crossmember.
'86 GL, '89 RX, '89 XT6, '90 T'sunami Wagon
- T'subaru
- Junior Member
- Posts: 733
- Joined: Mon Oct 13, 2008 9:13 am
- Location: T'sunami Coast, Wa. ( usa )
I would have used my dremel on this one but it had a dead battery and I only had 1 brass wheel, so I used an old toothbrush and alot of elbow grease:)steptoe wrote:I can see someone else uses a dremel style rotary tool to clean their gearbox
Notice also the cat converter halfway down the car. My 85 has it directly off the turbo in the dump pipe.
Looks like the rearest gearbox mount bolts can be used for EJ box as a brace across the mount holes and that brace can connect forward to the front gearbox xmem?
'86 GL, '89 RX, '89 XT6, '90 T'sunami Wagon
