My gearbox had babies!!

H-top · Post by **H-top** » Mon Dec 13, 2010 4:57 pm

Ok crew,

my new libbo and I were crusing down the street
and around a roundabout in second gear when I heard a bang! Clunk,
clunk, clunk!
I still have drive In second gear but it's so noisy so I
don't use it

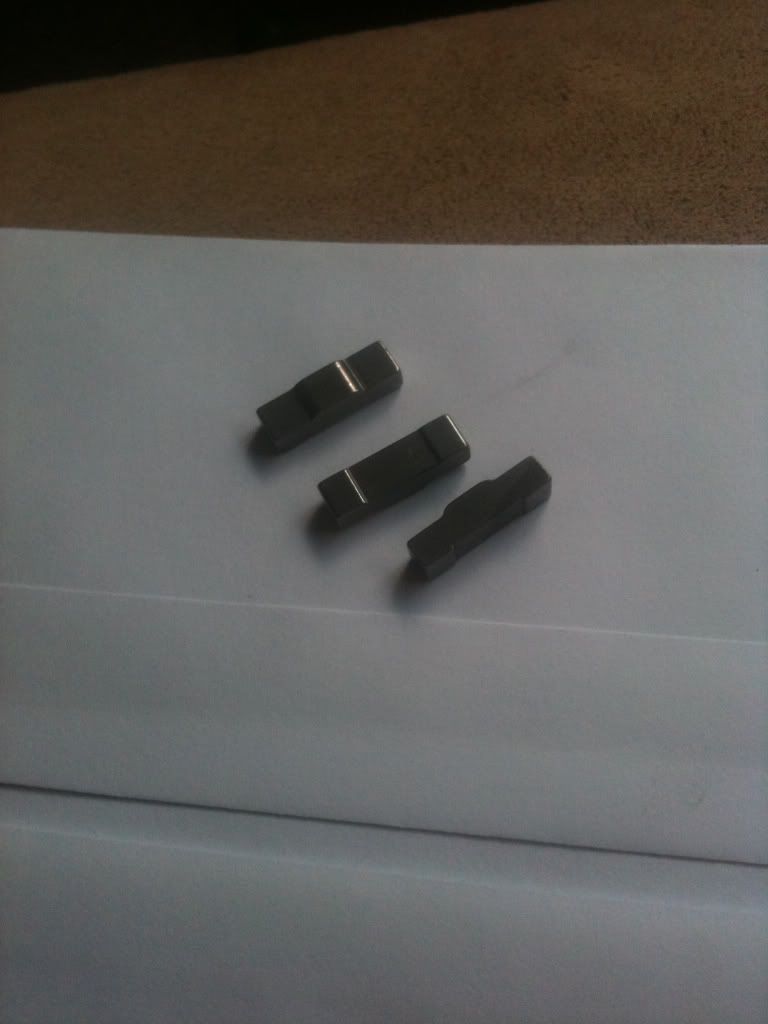

So I dropped the fluid and the only debris I found was
these three pieces of metal, and none are broken or sheared,
they are all the same.

it's a JDM Legacy Turbo 4.111 ratio

cheers

YouTube · Post by **El_Freddo** » Mon Dec 13, 2010 5:15 pm

Hmmm... They look like the little tab bits from the low range in my gearbox - so I'd be guessing that these are from one of your gearsets, I'm pretty sure they've got something to do with the syncros...

Sorry its not a lot of info, but they do look familiar to me! You might not have a completely dead gearbox (fingers crossed)

Cheers

Bennie

Post by **yarney** » Mon Dec 13, 2010 5:41 pm

It's hard to explain but they go under a round piece that the selector fork is connected to.
Your lucky you could still drive it i wouldn't drive the car or you will destroy the box, There is also a round spring that is floating around in there some where that holds the three pins in place.
The clunk was the pins hitting the teeth on the gears when they fell out
When mine fell out they landed in the wrong spot and bang no teeth on that gear anymore
Either get it fixed or replace the box:( sorry for the bad news.

Jan

H-top · Post by **H-top** » Mon Dec 13, 2010 5:46 pm

Well that's shit

Well I don't Have enough time to pull it apart and fix it yet.
I'll fix it up next year

I bought a JDM WRX V2 STi RA DCCD 555 3.9 ratio with rear diff.
With the super conical synchro 3rd gear

Should be at workshop by Thursday?

Cheers,
Sam

FujiFan · Post by **FujiFan** » Mon Dec 13, 2010 7:33 pm

Well thats a kick in the teeth!!:mad: From one drama to the next, so are the days of our lives.

H-top · Post by **H-top** » Mon Dec 13, 2010 7:59 pm

You are not wrong fuji!!

Maybe I should buy an evo

FujiFan · Post by **FujiFan** » Mon Dec 13, 2010 8:11 pm

Now dont go down that road! Mitsu's are great an all but you are here for a reason. The subi gods will take care of it

YouTube · Post by **El_Freddo** » Mon Dec 13, 2010 9:20 pm

H-top wrote:Maybe I should buy an evo

how DARE you say a thing like that - you barely even know your RS...

Bennie

H-top · Post by **H-top** » Mon Dec 13, 2010 9:36 pm

I hope they will, I don't want anything else to break!

ScubyRoo · Post by **ScubyRoo** » Mon Dec 13, 2010 11:00 pm

aparently drive train problems are in season...

What was the original box?

seagull · Post by **seagull** » Tue Dec 14, 2010 12:56 am

H-top wrote:Well that's shit

Well I don't Have enough time to pull it apart and fix it yet.
I'll fix it up next year

I bought a JDM WRX V2 STi RA DCCD 555 3.9 ratio with rear diff.
With the super conical synchro 3rd gear

Should be at workshop by Thursday?

Cheers,
Sam

this one ??
JDM Impreza WRX STi RA MY95 TY752VB3EA 3.454 2.333 1.750 1.354 0.972 3.416 1.000 3.900 DCCD (35:65) Open DCCD fitted off production line

H-top · Post by **H-top** » Tue Dec 14, 2010 8:29 am

Fujifan it's a JDM Legacy Turbo 4.111 AWD gearbox

seagull, yeah that's the one! Opinion?

Cheers

H-top · Post by **H-top** » Tue Dec 14, 2010 8:06 pm

Got my 3.9 rear Ordered for tomorrow

AlpineRaven · Post by **AlpineRaven** » Wed Dec 15, 2010 5:52 am

I think your RS has 3.545 rear diff - that will need changing if needed.
Cheers
AP

H-top · Post by **H-top** » Wed Dec 15, 2010 6:11 pm

It's actually a converted gx with import turbo legacy
driveline 4.111, got my 3.9 rear today

ScubyRoo · Post by **ScubyRoo** » Wed Dec 15, 2010 6:23 pm

what are your plans for your busted gearbox?
